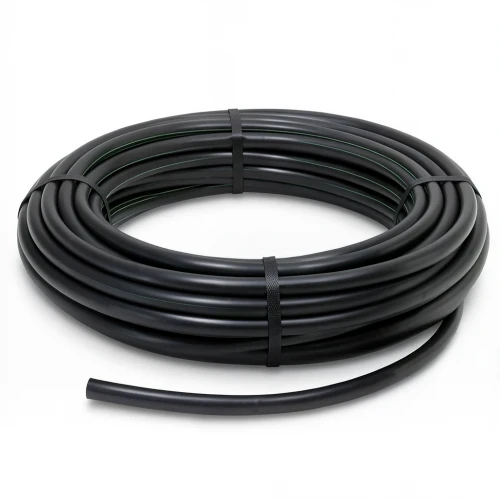

HDPE Plastic Coil Pipe PN 3.9 Bar [PE 63] Outside Diameter 75 mm SDR 21 Color Black | Almona Factory

This HDPE coil pipe from Almona Factory is engineered for reliable liquid conveyance in irrigation and water supply networks across the UAE. Manufactured from high-density polyethylene (PE 63) to DIN 8074/8075, it offers exceptional durability and a maintenance-free service life of up to 50 years, making it a cost-effective choice for long-term projects.

With an outside diameter of 75 mm and a pressure rating of 3.9 bar (SDR 21), this pipe withstands high operating pressures, ensuring consistent performance in demanding applications. Its black color provides UV resistance, ideal for the intense sun exposure common in Dubai, Abu Dhabi, and other emirates.

Key Features

• Outside diameter: 75 mm
• Wall thickness: 3.6 mm
• Weight: 0.828 kg/m
• Standard dimensional ratio (SDR): 21
• Pressure rating: 3.9 bar
• Pipe series (S): 10
• Material grade: PE 63
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 3.94 MPa
• Design safety factor: C=1.6
• Available in coils: 100 m, 200 m, 300 m, up to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm
• Manufactured to DIN 8074/8075

Applications in the UAE

Ideal for agricultural irrigation, landscaping, and municipal water distribution projects throughout the UAE, this pipe performs reliably in sandy soils and high-temperature environments. Its flexibility and coil form simplify handling and installation, reducing labor and time on site.
