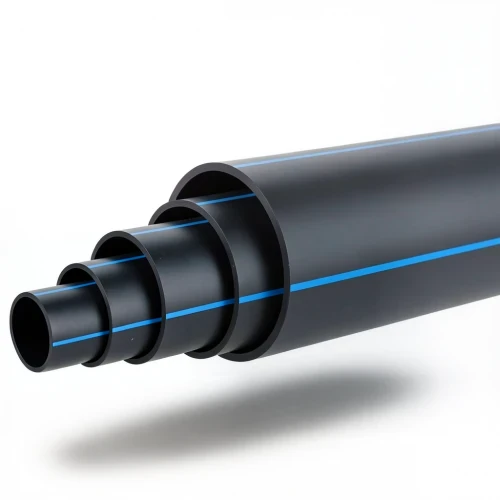

HDPE Plastic Pipe PN 3.2 Bar [PE 100] OD 225 mm SDR 41 Color Black with Blue Stripes | Almona Factory

Our HDPE pipes, manufactured by Al Mona Factory in accordance with DIN 8074/8075, are engineered for reliable water transportation in the demanding climate of the United Arab Emirates. Made from high-density polyethylene (PE100), these pipes offer exceptional durability, flexibility, and long-term performance, making them the preferred choice for municipal and industrial water networks across Dubai, Abu Dhabi, and the wider region.

Designed to withstand high pressures and harsh environmental conditions, these pipes provide a maintenance-free service life of up to 50 years. They resist UV degradation, chemical corrosion (pH 2–12), and seismic activity, ensuring uninterrupted water supply even in challenging conditions. The smooth inner surface minimizes friction losses, enhancing flow efficiency.

Key Features & Benefits

• Material grade: PE100 (high-density polyethylene) for superior strength and durability
• Pressure rating: 3.2 bar (PN 3.2)
• Outside diameter: 225 mm
• Standard dimension ratio: SDR 41 (pipe series S = 20)
• Wall thickness: 5.5 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 3.90 kg/m
• Design safety factor: C = 1.6 (σs = 6.25 MPa)
• Color: black with blue stripes for easy identification
• Length: 12 meters (custom lengths available on request)
• Compliant with DIN 8074/8075
• 50-year maintenance-free service life
• UV resistant, chemical resistant, and earthquake resistant

Ideal for potable water supply, irrigation, sewage, and industrial fluid transportation, these HDPE pipes are a cost-effective and sustainable solution for infrastructure projects throughout the UAE.
