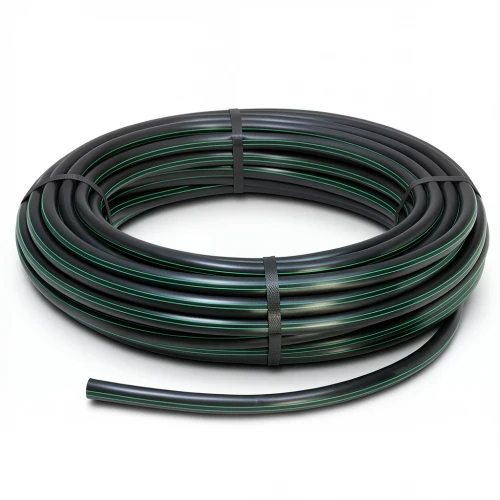

HDPE Plastic Coil Pipe Nominal Pressure 4 Bar [PE 63] OD 75 mm SDR 26 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe from Al Mona Factory is engineered for reliable water transportation in the UAE's demanding climate. Manufactured to DIN 8074/8075 standards, it delivers exceptional durability and performance for agricultural irrigation, landscaping, and municipal water supply projects across Dubai, Abu Dhabi, and the Northern Emirates.

Key Features

• High-density polyethylene (PE 63) construction resists corrosion and chemical attack (pH 2-12)
• Rated for 4 bar pressure, suitable for low-pressure irrigation systems
• 50-year maintenance-free service life, reducing long-term operational costs
• UV-resistant, perfect for outdoor installations under the intense UAE sun
• Flexible and earthquake-resistant, ensuring integrity in seismic zones
• Available in coils of 100, 200, 300, up to 1500 meters for sizes 16-32 mm; 100-meter coils for 40-160 mm

Specifications

• Outside diameter: 75 mm
• Standard dimension ratio (SDR): 26
• Pipe series (S): 12.5
• Material grade: PE 63
• Pressure rating: 4 bar
• Wall thickness: 2.9 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 0.675 kg/m
• Design safety factor: C=1.25, σs=5.04 MPa
• Color: Black with green stripes

Whether for agricultural farms in Al Ain, landscaping projects in Dubai, or infrastructure developments in Sharjah, this HDPE pipe offers a cost-effective and long-lasting solution. Its flexibility simplifies installation, while its resistance to UV and chemicals ensures dependable performance in the UAE's harsh environment.
