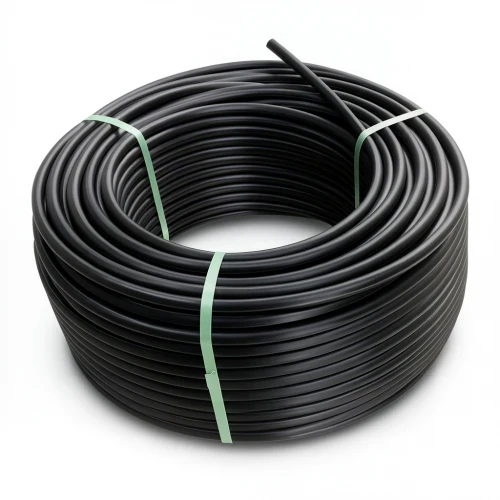

HDPE Plastic Coil Pipe PN 3.2 Bar [PE 100] Outside Diameter 160 mm SDR 41 Color Black | Almona Factory

This HDPE coil pipe from Al Mona Factory is engineered for reliable water transportation in the UAE's demanding environments. Made from high-density polyethylene (PE 100), it offers exceptional strength and durability, with a 50-year maintenance-free service life. Its black color provides natural UV resistance, making it suitable for outdoor installations across Dubai, Abu Dhabi, and the wider Emirates.

With an outside diameter of 160 mm and a standard dimensional ratio (SDR 41), this pipe handles a working pressure of 3.2 bar, ideal for low-pressure water supply and irrigation networks. The material's minimum required strength (MRS) of 10.0 MPa and design stress of 6.25 MPa ensure long-term performance, while the design safety factor of C=1.6 adds an extra layer of reliability.

Key Features

• PE 100 grade for high strength and impact resistance
• Outside diameter: 160 mm; wall thickness: 4.0 mm
• Weight: 2.02 kg/m – lightweight for easy handling
• Pressure rating: 3.2 bar (SDR 41, S=20)
• Black color for UV stability in harsh sunlight
• Manufactured to DIN 8074/8075 standards
• Available in coils of 100 meters (for sizes 40–160 mm)

Ideal for municipal water supply, agricultural irrigation, and industrial fluid transfer projects across the UAE, this coil pipe offers flexibility and ease of installation, reducing the need for joints and fittings.
