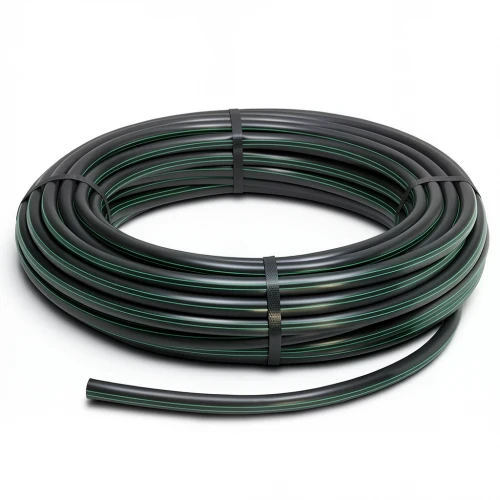

HDPE Plastic Coil Pipe PN 6.2 Bar [PE 63] Outside Diameter 63 mm SDR 13.6 Color Black with Green Stripes | Almona Factory

These HDPE (High-Density Polyethylene) coil pipes, manufactured by Al Mona Factory in accordance with DIN 8074/8075, are engineered for efficient and reliable water transportation. With a PE63 material grade and a pressure rating of 6.2 bar, they deliver robust performance for a wide range of applications, from municipal water supply to agricultural irrigation in the UAE's demanding climate.

Key Features

• High flexibility for easy installation and resistance to ground movement and seismic activity
• Excellent resistance to chemical corrosion, handling pH levels from 2 to 12
• UV resistant, suitable for prolonged outdoor exposure under the intense UAE sun
• Long service life of 50 years with minimal maintenance
• Available in coil lengths from 100 to 1500 meters (for 16-32 mm) and 100-meter coils for 40-160 mm

Specifications

• Outside Diameter: 63 mm
• Standard Dimension Ratio: SDR 13.6
• Pipe Series (S): 6.3
• Material Grade: PE 63
• Pressure: 6.2 bar
• Thickness: 2.5 mm
• Minimum Required Strength (MRS): 6.3 MPa
• Weight: 0.494 kg/m
• Design Safety Factor: C=1.6, σs = 3.94 MPa
• Color: Black with green stripes

Applications in the UAE

Ideal for water distribution networks in Dubai, Abu Dhabi, and Sharjah, these pipes withstand high pressures and are suitable for potable water lines, irrigation systems, and industrial fluid transport. Their flexibility simplifies installation in challenging terrains, and their durability ensures long-term performance in the region's harsh environmental conditions.
