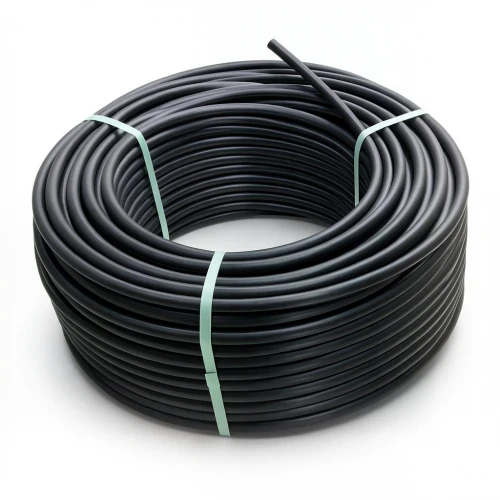

HDPE Plastic Coil Pipe Nominal Pressure 8 Bar [PE 80] OD 90 mm SDR 17 Color Black | Almona Factory

These HDPE coil pipes, manufactured by Almona Factory, are engineered for reliable water transportation networks in the UAE. Made from high-density polyethylene (PE80), they offer exceptional strength, durability, and resistance to corrosion, making them suitable for the region's demanding conditions.

With a nominal pressure of 8 bar and an outer diameter of 90 mm, these pipes are designed to withstand high temperatures and pressure, ensuring long-lasting performance. The SDR 17 standard dimension ratio and 5.4 mm wall thickness provide structural integrity, while the black color offers UV resistance for outdoor installations.

Compliant with ISO 4427-2, these pipes are easy to install and maintain, eliminating the need for extensive digging. Available in coil lengths from 100 to 300 meters for sizes 16-32 mm, and 100-meter coils for sizes 40-160 mm, they cater to a wide range of project requirements across Dubai, Abu Dhabi, and Sharjah.

Key Features

• High-density polyethylene (PE80) construction
• Nominal pressure: 8 bar
• Outer diameter: 90 mm, SDR 17
• Wall thickness: 5.4 mm
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa, safety factor C=1.25
• Black color for UV protection
• ISO 4427-2 compliant
• Available in various coil lengths
