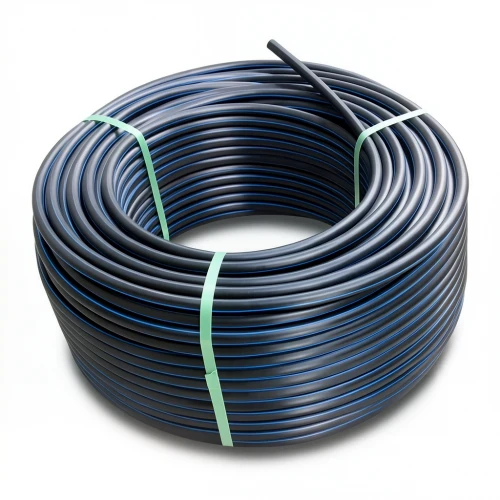

HDPE Plastic Coil Pipe Nominal Pressure 20 Bar [PE 100] OD 20 mm SDR 9 Color Black with Blue Stripes | Almona Factory

Our HDPE coil pipes, manufactured by Almona Factory, are engineered for reliable water transportation in the demanding climate of the United Arab Emirates. With a nominal pressure of 20 bar and a PE100 material grade, these pipes deliver exceptional strength and durability for municipal and industrial applications.

Compliant with DIN 8074/8075, these pipes offer a service life of over 50 years with minimal maintenance, making them a cost-effective choice for long-term projects in Dubai, Abu Dhabi, and across the Emirates. Their high flexibility ensures resistance to seismic activity and ground movement, while UV resistance protects them during prolonged outdoor exposure.

Key Features

• Outside diameter: 20 mm
• Standard Dimension Ratio (SDR): 9
• Pipe Series (S): 4
• Material Grade: PE 100
• Pressure Rating: 20 bar
• Wall Thickness: 2.3 mm
• Minimum Required Strength (MRS): 8 MPa
• Material Weight: 0.134 kg/m
• Design Safety Factor: C=1.25
• Color: Black with blue stripes
• Available in coils: 100m, 200m, 300m up to 1500m (sizes 16mm to 32mm); 100m coils for sizes 40mm to 160mm

These pipes withstand a wide range of chemicals (pH 2-12) and are suitable for potable water, irrigation, and industrial fluid transfer. Ideal for UAE infrastructure projects, they ensure leak-proof joints and smooth flow, reducing energy costs.
