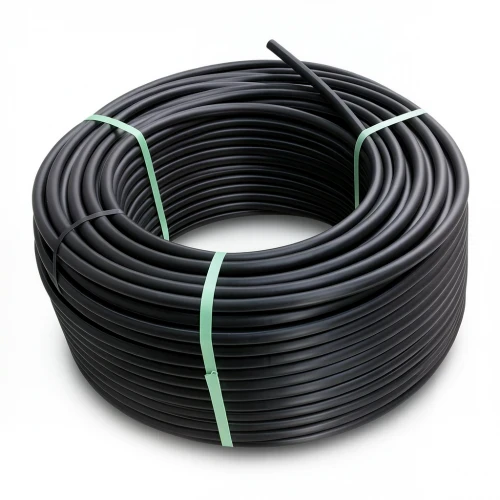

HDPE Plastic Coil Pipe PN 15.6 Bar [PE 100] Outside Diameter 90 mm SDR 9 Color Black | Almona Factory
(6 Product Views)
High-density polyethylene (HDPE) coil pipe from Almona Factory, PE 100 grade, 15.6 bar pressure rating, 90 mm outside diameter, SDR 9, black, ideal for water networks across the UAE.
in stock
Product description
This HDPE coil pipe, manufactured by Almona Factory to DIN 8074/8075, is a reliable solution for water transportation networks in the UAE. Made from high-density polyethylene, it offers exceptional durability and performance, ensuring efficient liquid flow even under high pressures common in urban and industrial applications across Dubai, Abu Dhabi, and Sharjah.
Key Features
- High pressure resistance: rated at 15.6 bar, suitable for demanding water systems
- Long service life: maintenance-free for up to 50 years
- UV resistant: withstands prolonged exposure to the intense UAE sun
- Chemically resistant: handles a wide pH range (2 to 12) without corrosion
- Earthquake resistant: flexible joints and pipe body absorb seismic stress
- Available in coil lengths: 100m, 200m, 300m up to 1500m (sizes 16-32mm) and 100m coils for 40-160mm
Specifications
- Outside diameter: 90 mm
- Standard dimension ratio: SDR 9
- Pipe series (S): 4
- Material grade: PE 100
- Pressure rating: 15.6 bar
- Wall thickness: 10.1 mm
- Minimum required strength (MRS): 10 MPa
- Weight: 2.57 kg/m
- Design safety factor: C=1.6, ฯs=6.25 MPa
- Color: Black
Ideal for potable water lines, irrigation systems, and industrial fluid transport across the UAE, this pipe ensures reliable performance in extreme heat and demanding conditions.
