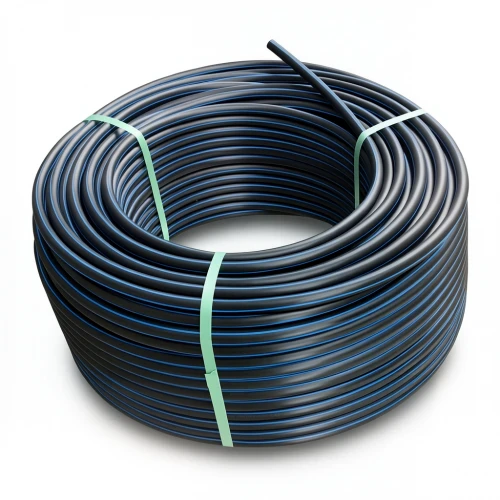

HDPE Plastic Coil Pipe Nominal Pressure 4 Bar [PE 100] OD 140 mm SDR 33 Color Black with Blue Stripes | Almona Factory

These HDPE coil pipes, manufactured by Almona Factory in accordance with DIN 8074/8075, offer a robust solution for water transportation networks across the United Arab Emirates. Crafted from high-density polyethylene (PE 100), they deliver exceptional durability and performance, making them ideal for demanding infrastructure projects in Dubai, Abu Dhabi, and the Northern Emirates.

With a nominal pressure of 4 bar and an outside diameter of 140 mm, these pipes are engineered to handle high water pressures commonly found in municipal supply lines and agricultural irrigation systems. Their SDR 33 rating and 4.3 mm wall thickness ensure reliable operation, while the 50-year maintenance-free lifespan reduces long-term operational costs for property developers and facility managers.

The black exterior with blue stripes provides UV resistance, crucial for the intense UAE sun, and the inherent flexibility of HDPE allows the pipes to withstand seismic activity and ground movement. Chemical resistance across a pH range of 2 to 12 makes them suitable for a variety of industrial and wastewater applications.

Key Features

• PE 100 material grade with MRS of 10 MPa
• Nominal pressure: 4 bar
• Outside diameter: 140 mm, wall thickness: 4.3 mm
• SDR 33 and pipe series S 16
• Design safety factor C=1.6, σs = 6.25 MPa
• Weight: 1.09 kg/m
• Color: black with blue stripes
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (for sizes 16-32 mm); 100 m coils for sizes 40-160 mm

Ideal for water supply networks, irrigation systems, sewage lines, and drainage projects, these pipes meet the rigorous standards required for UAE construction and infrastructure development.
