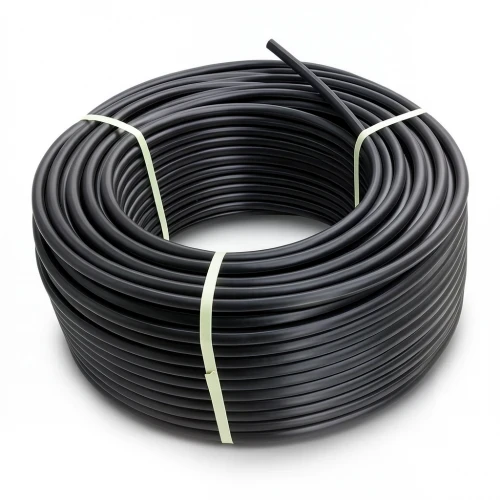

HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 100] OD 125 mm SDR 13.6 Color Black | Almona Company

This HDPE coil pipe from Al-Mona Company is designed for reliable water transportation in demanding environments, from municipal supply lines to agricultural irrigation projects across the United Arab Emirates. Manufactured from high-density polyethylene (PE100), it offers exceptional strength, durability, and resistance to corrosion, ensuring long service life even in harsh desert conditions.

With a nominal pressure of 12.5 bar and a standard dimensional ratio (SDR) of 13.6, this pipe is built to handle high-pressure applications while maintaining flexibility. Its black color provides UV resistance, making it suitable for above-ground installations exposed to the intense UAE sun.

Key Specifications

• Outside diameter: 125 mm
• Wall thickness: 9.2 mm
• Standard dimensional ratio (SDR): 13.6
• Nominal pressure (PN): 12.5 bar
• Pipe series (S): 6.3
• Material grade: PE100
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor (C): 1.25
• Available in coils: 100, 200, 300 meters up to 1500 meters (sizes 16–32 mm); 100-meter coils for sizes 40–160 mm
• Manufactured according to ISO 4427-2

Applications in the UAE

This HDPE pipe is widely used in water transportation networks, including potable water distribution, irrigation systems, and industrial applications. Its corrosion resistance and durability make it a preferred choice for projects in Dubai, Abu Dhabi, and Sharjah, where reliable infrastructure is essential. The pipe's flexibility allows for easy installation in challenging terrains, reducing the need for fittings and joints.
