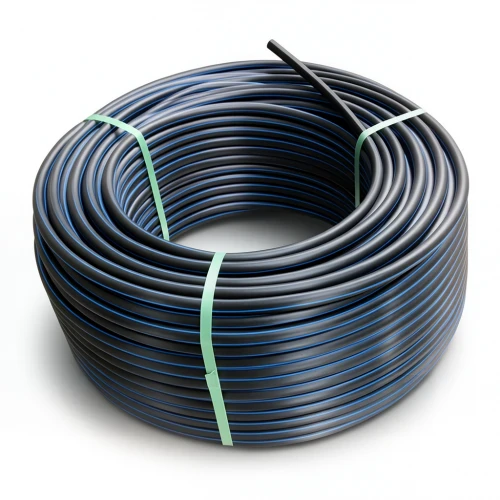

HDPE Plastic Coil Pipe PN 20 Bar [PE 100] OD 63 mm SDR 9 Color Black with Blue Stripes | Almona Factory

Our HDPE (high-density polyethylene) coil pipes are engineered for reliable water transportation in the demanding UAE climate. Manufactured by Al Mona Factory to DIN 8074/8075 standards, these pipes combine exceptional strength with flexibility, making them a top choice for potable water networks, irrigation systems, and industrial applications across Dubai, Abu Dhabi, and the Northern Emirates.

With a PE 100 material grade and a 20 bar pressure rating, these pipes handle high-pressure water distribution with ease. The 63 mm outside diameter and SDR 9 ratio ensure optimal flow and durability. Designed for longevity, they offer a 50-year maintenance-free service life, thanks to their resistance to UV radiation, chemical corrosion (pH range 2–12), and seismic activity—critical in a region prone to extreme heat and occasional tremors.

Key Features

• Material: High-density polyethylene (PE 100), MRS 8 MPa
• Pressure rating: 20 bar (PN 20)
• Outside diameter: 63 mm; wall thickness: 7.1 mm
• SDR 9 (Standard Dimension Ratio); Pipe Series S: 4
• Design safety factor: C = 1.25; weight: 1.27 kg/m
• Color: Black with blue stripes for easy identification
• Available in coils: 100 m, 200 m, 300 m, up to 1500 m (sizes 16–32 mm); 100 m coils for sizes 40–160 mm
• UV resistant, earthquake resistant, and chemically inert

Whether for municipal water supply, agricultural irrigation, or industrial fluid transport, these HDPE coil pipes deliver unmatched performance and ease of installation across the UAE. Their lightweight nature reduces handling costs and speeds up deployment, ensuring project efficiency in both urban and remote locations.
