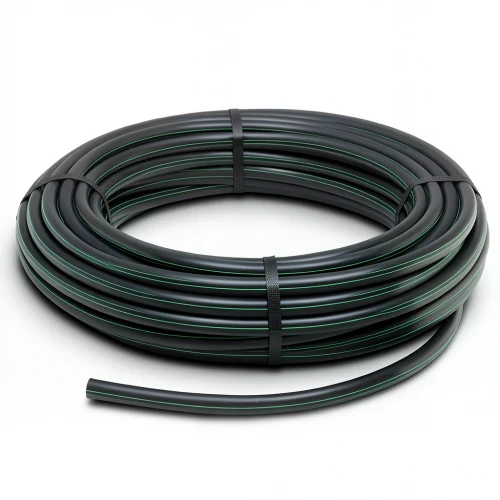

HDPE Coil Pipe Pressure 15.7 Bar [PE 63] Outer Diameter 140 mm SDR 6 Color Black | Almona Factory

Engineered for the demanding conditions of the UAE's agricultural and infrastructure sectors, this HDPE coil pipe from Al-Mona Factory delivers exceptional performance and longevity. Manufactured from high-density polyethylene (PE 63), it offers a robust solution for transporting water and other fluids under high pressure, making it a trusted choice for irrigation networks, water supply lines, and industrial applications across Dubai, Abu Dhabi, and the wider Emirates.

Key Features and Benefits

• High Pressure Rating: With a nominal pressure of 15.7 bar and SDR 6, this pipe is designed to withstand significant internal pressures, ensuring reliable operation in demanding water distribution systems.
• Durable and Long-Lasting: Enjoy a maintenance-free service life of up to 50 years, thanks to the inherent corrosion resistance and durability of HDPE, even in the UAE's harsh climate.
• Lightweight and Easy to Handle: Compared to traditional metal pipes, this HDPE coil is significantly lighter, simplifying transportation, handling, and installation—a key advantage for projects in remote or challenging terrains.
• Superior Resistance: Provides excellent protection against external factors such as soil conditions, UV exposure, and chemical agents, ensuring long-term integrity.
• Flexible Coil Format: Supplied in convenient coils (available in lengths from 100 to 1500 meters for smaller diameters, and 100-meter coils for sizes 40-160 mm), reducing the need for joints and speeding up installation.

Technical Specifications

• Outer Diameter: 140 mm
• Wall Thickness: 23.3 mm
• Weight: 8.47 kg/m
• Standard Dimension Ratio (SDR): 6
• Pressure Rating: 15.7 bar
• Pipe Series (S): 2.5
• Material Grade: PE 63
• Color: Black
• Minimum Required Strength (MRS): 6.3 MPa
• Design Stress (σs): 3.94 MPa
• Design Safety Factor: C=1.6
• Manufactured according to DIN 8074/8075

Ideal for agricultural irrigation projects, municipal water supply, and industrial fluid handling, this HDPE coil pipe is a versatile and cost-effective choice for the UAE's growing infrastructure. Its high-pressure capability and durability make it particularly suitable for the region's water-scarcity challenges, ensuring efficient water delivery with minimal leakage.
