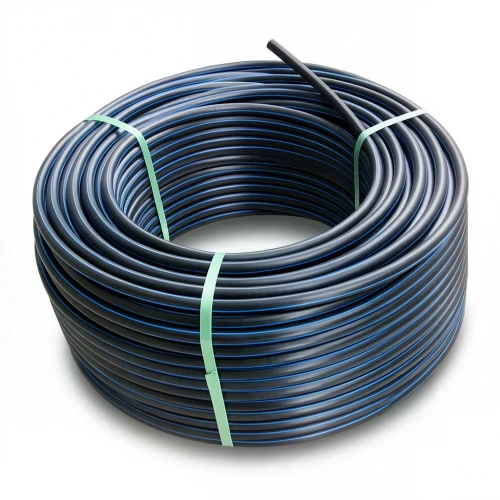

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 100] OD 25 mm SDR 13.6 Color Black with Blue Stripes | Almona Factory

This HDPE coil pipe, manufactured by Almona Factory in accordance with DIN 8074/8075, is a top-tier solution for water transportation networks across the United Arab Emirates. Crafted from high-density polyethylene (PE 100), it delivers exceptional durability and performance, making it a preferred choice for both potable water and general fluid conveyance in demanding environments.

Key Features

• Pressure rating: 12.5 bar (PN 12.5)
• Outside diameter: 25 mm
• Standard Dimension Ratio (SDR): 13.6
• Pipe Series (S): 6.3
• Material grade: PE 100
• Wall thickness: 2 mm
• Minimum Required Strength (MRS): 8 MPa
• Design safety factor: C=1.25
• Weight: 0.151 kg/m
• Color: Black with blue stripes
• Available in coils: 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm

Performance Benefits

Engineered to withstand high water pressure, these pipes are ideal for networks subjected to intense operational stress. They offer a maintenance-free service life of 50 years, reducing long-term operational costs. The material's flexibility ensures excellent resistance to earthquakes and ground movement, a critical advantage in the UAE's dynamic construction landscape. Additionally, HDPE provides superior protection against UV radiation and chemical corrosion, handling a wide pH range from 2 to 12, making them suitable for various industrial and municipal applications.

Applications in the UAE

Perfect for water supply lines, irrigation systems, and infrastructure projects in Dubai, Abu Dhabi, and Sharjah. Their lightweight nature and coil format facilitate easy transportation and installation, even in remote or challenging terrains. Whether for new developments or retrofitting existing networks, these pipes deliver reliable performance under the region's high temperatures and demanding conditions.
