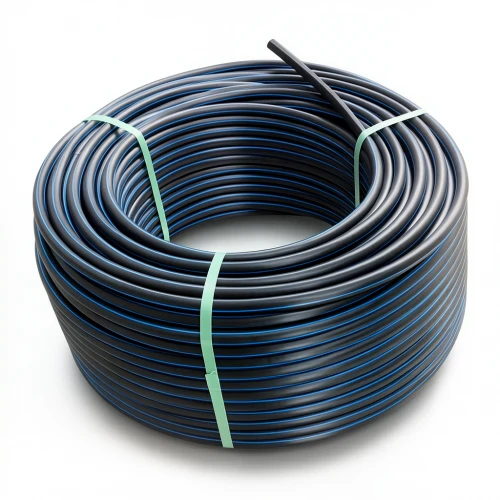

HDPE Plastic Coil Pipe PN 9.9 Bar [PE 100] OD 140 mm SDR 13.6 Color Black with Blue Stripes | Almona Factory

Al Mona Factory presents premium HDPE (high-density polyethylene) coil pipes, engineered for reliable water transportation in the demanding climate of the United Arab Emirates. Manufactured to DIN 8074/8075 standards, these pipes combine exceptional durability with long-term performance, making them a trusted choice for infrastructure projects across Dubai, Abu Dhabi, and Sharjah.

These PE100 pipes are designed to withstand high water pressure, ensuring safe and efficient distribution in municipal networks and industrial applications. With a minimum required strength of 10 MPa and a design safety factor of 1.6, they offer robust performance under extreme conditions. Their flexibility and resistance to seismic activity provide added security for underground installations, while their UV resistance ensures longevity even in the intense UAE sun.

Key features include:

• Outside diameter: 140 mm
• Standard dimension ratio (SDR): 13.6
• Pipe series (S): 6.3
• Material grade: PE100
• Pressure rating: 9.9 bar
• Wall thickness: 10.3 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 4.26 kg/m
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Length: Available in coils of 100, 200, 300 meters up to 1500 meters for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm

These pipes offer excellent chemical resistance, withstanding pH levels from 2 to 12, and require minimal maintenance with a service life of over 50 years. Ideal for potable water supply, irrigation, and industrial fluid transport, they meet the high standards expected in the UAE's construction and utility sectors.
