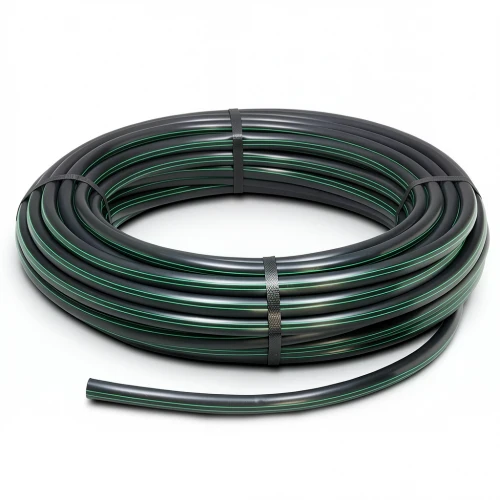

HDPE Plastic Coil Pipe PN 9.8 Bar [PE 63] Outside Diameter 140 mm SDR 9 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents its HDPE (high-density polyethylene) coil pipes, engineered to meet the demanding requirements of water transportation networks across Qatar. Manufactured in accordance with DIN 8074/8075, these pipes offer a robust and reliable solution for both potable water and industrial applications, ensuring long-term performance in the region's challenging climate.

These pipes are specifically designed to handle high water pressures, making them ideal for municipal water supply lines and pressure-intensive systems. Their exceptional flexibility and resistance to seismic activity provide added safety and durability, particularly important in a region like Qatar. With a minimum required strength (MRS) of 6.3 MPa and a design safety factor of C=1.6, they deliver consistent and dependable service.

Beyond mechanical strength, the HDPE material offers superior resistance to UV radiation and chemical corrosion, withstanding a wide pH range from 2 to 12. This ensures a maintenance-free lifespan of up to 50 years, reducing operational costs and downtime. The pipes are available in coil lengths from 100 to 1500 meters for smaller diameters, and in 100-meter coils for sizes up to 160 mm, providing flexibility for various project scales.

Key Specifications

• Outside diameter: 140 mm
• Standard dimension ratio (SDR): 9
• Pipe series (S): 4
• Material grade: PE 63
• Pressure rating: 9.8 bar
• Wall thickness: 15.7 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 6.11 kg/m
• Design safety factor: C = 1.6 (σs = 3.94 MPa)
• Color: Black with green stripes
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (16 mm to 32 mm); 100 m coils (40 mm to 160 mm)

Ideal for water supply networks, irrigation systems, and industrial fluid transport in Qatar, these HDPE pipes offer a cost-effective and long-lasting solution for infrastructure projects in Doha, Al Rayyan, and beyond.
