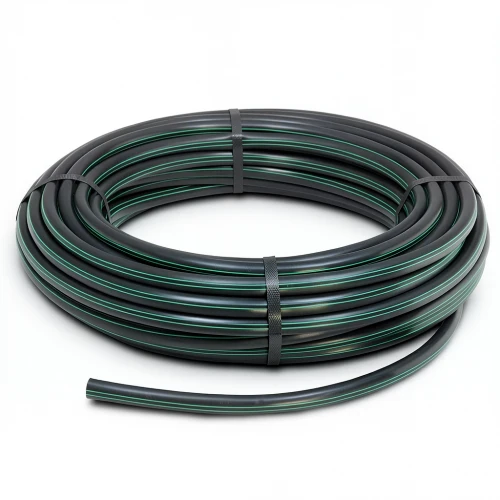

HDPE Plastic Coil Pipe PN 4 Bar [PE 80] OD 50 mm SDR 33 Color Black with Green Stripes | Almona Factory

Reliable HDPE Coil Pipe for Water Networks

This HDPE (high-density polyethylene) coil pipe, manufactured by Almona Factory in accordance with DIN 8074/8075, delivers outstanding performance for water transportation systems across Qatar. Its robust construction ensures durability and long-lasting service, even under demanding conditions.

Key Features

• High Pressure Resistance: Rated at 4 bar, suitable for networks experiencing elevated pressures.
• UV Stability: Withstands prolonged exposure to sunlight without degradation, ideal for Qatar's intense climate.
• Long Service Life: Offers a maintenance-free lifespan of up to 50 years.
• Earthquake Resistant: High flexibility of pipe and welded joints provides resilience against seismic activity.
• Chemical Resistance: Tolerates a wide range of chemicals with pH levels from 2 to 12.

Specifications

• Outside Diameter: 50 mm
• Standard Dimension Ratio (SDR): 33
• Pipe Series (S): 16
• Material Grade: PE 80
• Pressure Rating: 4 bar
• Wall Thickness: 1.8 mm
• Minimum Required Strength (MRS): 8 MPa
• Weight: 0.287 kg/m
• Design Safety Factor: C = 1.25
• Color: Black with green stripes
• Length: Available in coils of 100, 200, 300 meters (up to 1500 meters for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Applications in Qatar

Perfect for irrigation systems, water supply lines, and industrial piping projects in Doha, Al Rayyan, Al Wakrah, and other regions of Qatar. Its durability and resistance to harsh environmental factors make it a dependable choice for both residential and commercial developments.
