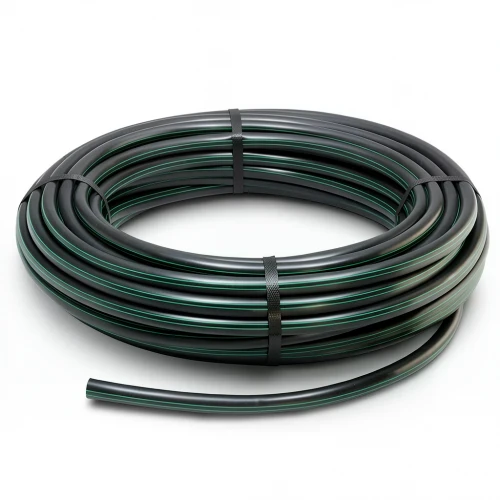

HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 63] OD 25 mm SDR 11 Color Black with Green Stripes | Almona Factory

This HDPE (high-density polyethylene) coil pipe, produced by Almona Factory, is engineered for reliable water transportation networks. With a nominal pressure of 10 bar and an outside diameter of 25 mm, it meets the rigorous demands of Qatar's infrastructure and construction projects.

Manufactured in accordance with DIN 8074/8075, this PE 63 grade pipe offers a minimum required strength of 6.3 MPa and a design safety factor of C=1.25, ensuring long-term performance. Its SDR 11 ratio and 2.3 mm wall thickness provide excellent pressure resistance, while the material's flexibility makes it ideal for withstanding ground movements and seismic activity—a key consideration in the Gulf region.

The pipe is resistant to UV radiation, chemical corrosion (pH 2–12), and hot water, making it suitable for a wide range of applications. With a maintenance-free lifespan of up to 50 years, it is a cost-effective solution for water supply networks in Doha, Al Rayyan, and Al Wakrah.

Key Features

• Nominal pressure: 10 bar
• Outside diameter: 25 mm
• SDR 11, pipe series S=5
• Material: PE 63, MRS 6.3 MPa
• Wall thickness: 2.3 mm
• Weight: 0.171 kg/m
• Color: black with green stripes
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (sizes 16–32 mm)

Ideal for potable water lines, irrigation systems, and industrial applications, this HDPE coil pipe combines durability with ease of installation—making it a preferred choice for projects across Qatar.
