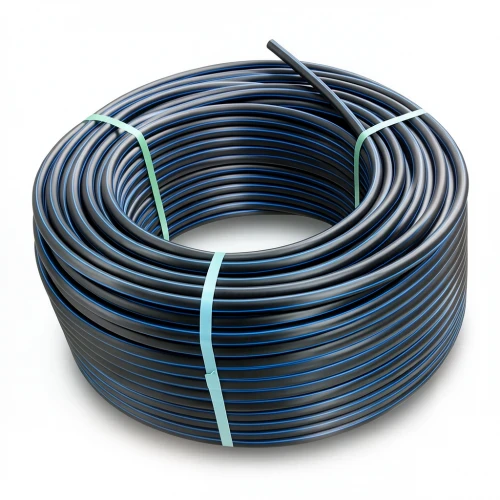

HDPE Plastic Coil Pipe PN 16 Bar [PE 100] OD 140 mm SDR 11 Color Black with Blue Stripes | Almona Factory

These HDPE coil pipes from Al Mona Factory are engineered for reliable water transportation in demanding environments. Manufactured to DIN 8074/8075, they offer exceptional durability and long-term performance, making them a preferred choice for infrastructure projects across Qatar, from Doha's urban developments to Al Rayyan and Al Wakrah.

With a high-pressure rating of 16 bar and a PE 100 material grade, these pipes handle the rigorous demands of municipal water networks and industrial applications. Their flexibility and resistance to seismic activity are particularly valuable in a region that values robust infrastructure. The 50-year maintenance-free service life reduces operational costs, while resistance to UV and chemical corrosion (pH 2-12) ensures consistent performance under Qatar's harsh sun and soil conditions.

Key Features

• Outside diameter: 140 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE 100
• Pressure rating: 16 bar
• Wall thickness: 12.7 mm
• Minimum required strength (MRS): 8 MPa
• Material weight: 5.13 kg/m
• Design safety factor: C=1.25
• Color: Black with blue stripes
• Available in coils: 100 m, 200 m, 300 m up to 1500 m for sizes 16-32 mm; 100 m coils for sizes 40-160 mm

These pipes are suitable for potable water supply, irrigation, and industrial fluid transfer. Their ease of installation and joint flexibility make them a practical solution for contractors and engineers working on projects throughout Qatar.
