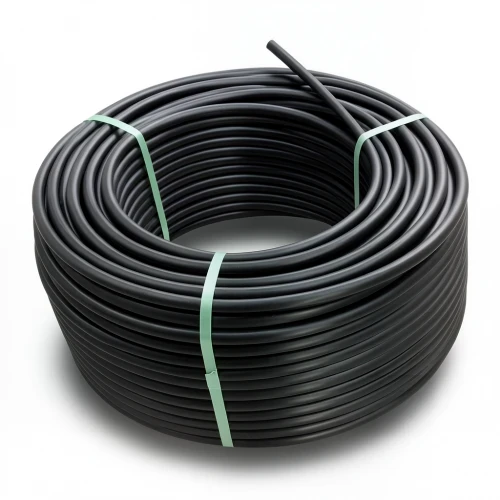

HDPE Coil Pipe PN 5 Bar [PE 80] Outside Diameter 90 mm SDR 26 Color Black | Almona Factory

These HDPE coil pipes, manufactured by Al-Mona Factory to ISO 4427-2, are engineered for reliable water transportation networks. Made from high-density polyethylene (PE 80), they offer exceptional strength, durability, and resistance to corrosion, chemicals, and UV radiation—making them well-suited for Qatar's harsh climate and demanding infrastructure environments.

With a pressure rating of 5 bar and an outer diameter of 90 mm (SDR 26), these pipes are versatile for a range of applications, including potable water supply, irrigation systems, and sewage networks. Their flexibility allows for easy installation in coils, reducing the need for joints and fittings, which is especially beneficial for long-distance piping projects across Doha, Al Rayyan, and Al Wakrah.

Key Features

• Material grade: PE 80 (high-density polyethylene)
• Pressure rating: 5 bar (PN 5)
• Outside diameter: 90 mm
• Standard dimension ratio: SDR 26
• Wall thickness: 3.5 mm
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C = 1.25
• Color: black (UV-resistant)
• Available in coils: 100 m, 200 m, 300 m, up to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm
• Compliant with ISO 4427-2

These pipes are an excellent choice for contractors and developers in Qatar seeking durable, cost-effective piping solutions that meet international standards.
