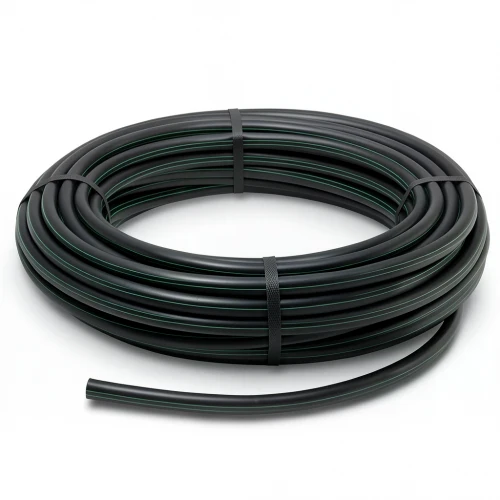

HDPE Coil Pipe PN 10 Bar [PE 80] OD 140 mm SDR 13.6 Color Black | Almona Company

Engineered for longevity and reliability, this HDPE coil pipe from Al-Mona Company is the smart choice for water distribution and irrigation projects across Qatar. Manufactured from high-density polyethylene (PE 80), it delivers outstanding resistance to corrosion, chemicals, and abrasion, ensuring a maintenance-free service life of up to 50 years—even under the harsh desert sun and saline soil conditions common in Doha, Al Rayyan, and Al Wakrah.

With a 140 mm outside diameter and a standard dimension ratio (SDR) of 13.6, this pipe is rated for a working pressure of 10 bar, making it suitable for high-pressure water networks. Its smooth inner surface minimizes friction losses, improving flow efficiency and reducing pumping costs—a key advantage for large-scale agricultural and landscaping projects in Qatar.

Key Features

• Outside diameter: 140 mm
• Wall thickness: 10.3 mm
• Material weight: 4.22 kg/m
• Standard dimension ratio (SDR): 13.6
• Pressure rating: 10 bar
• Pipe series (S): 6.3
• Material grade: PE 80
• Color: Black
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Length: Coils from 100 m to 1500 m (sizes 16-32 mm); 100 m coils (sizes 40-160 mm)
• Manufactured according to DIN 8074/8075

Whether you are upgrading municipal water lines, installing drip irrigation for farms, or developing green spaces in Qatar's urban centers, this HDPE coil pipe offers the durability and performance you need. Its flexibility allows for easy installation around obstacles, reducing the need for fittings and joints, which lowers labor time and potential leak points. Trust Al-Mona's quality to deliver consistent water flow for decades to come.
