HDPE Coil Pipe Nominal Pressure 10 Bar [PE 63] OD 110 mm SDR 11 Color Black | Almona Company

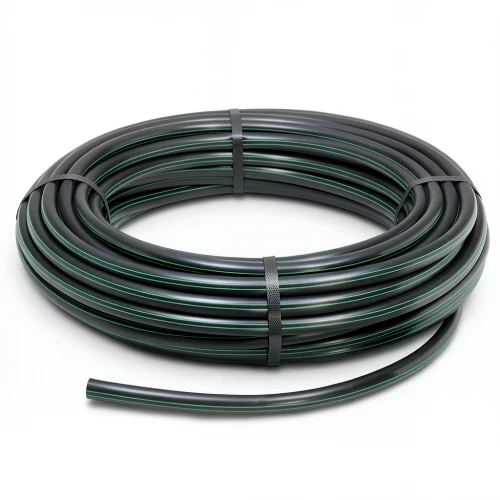

This HDPE coil pipe from Al-Mona Company is a top-tier solution for irrigation and water conveyance across Qatar. Manufactured from high-density polyethylene (PE 63) and rated for a nominal pressure of 10 bar, it offers exceptional resistance to high water pressures and harsh environmental conditions—making it a reliable choice for the demanding climate of Doha, Al Rayyan, and Al Wakrah.

With a 50-year maintenance-free lifespan, this pipe minimizes operational costs and ensures long-term performance. Its black color (SDR 11) provides UV protection, while the smooth interior reduces friction and energy consumption. The pipe meets DIN 8074/8075 standards, guaranteeing quality and consistency.

Key features:

• Outside diameter: 110 mm
• Wall thickness: 10.0 mm
• Material weight: 3.14 kg/m
• Standard dimensional ratio (SDR): 11
• Nominal pressure: 10 bar
• Pipe series (S): 5
• Material grade: PE 63
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 5.04 MPa
• Design safety factor: C=1.25
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm
• Manufactured according to DIN 8074/8075

Ideal for agricultural irrigation, landscaping, and municipal water networks in Qatar, this pipe delivers durability and efficiency, ensuring uninterrupted water flow even under extreme conditions.
