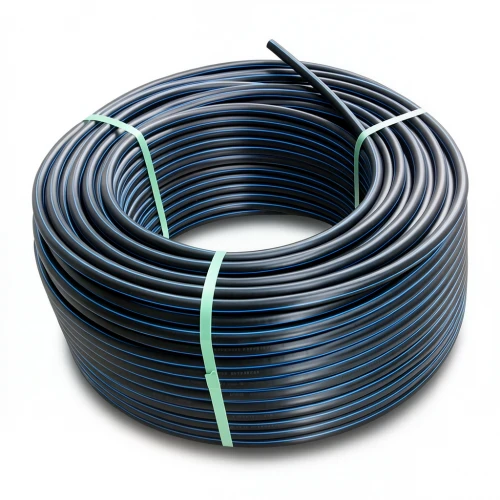

HDPE Plastic Coil Pipe Nominal Pressure 9.9 Bar [PE 100] Outside Diameter 90 mm SDR 13.6 Color Black with Blue Stripes | Almona Factory

These HDPE (high-density polyethylene) coil pipes, manufactured by Al Mona Factory in accordance with DIN 8074/8075, deliver exceptional performance for water supply and transportation networks. Engineered with PE 100 grade material, they handle a nominal pressure of 9.9 bar and feature an outside diameter of 90 mm, ensuring reliable flow in demanding applications.

In Qatar's challenging climate, these pipes offer outstanding durability. They resist UV radiation, chemical corrosion (pH range 2-12), and even earthquakes thanks to their flexibility and strong welded joints. With a design life of over 50 years without maintenance, they are a cost-effective solution for infrastructure projects in Doha, Al Rayyan, and beyond.

Key Features

• Material grade: PE 100 (MRS 10 MPa)
• Nominal pressure: 9.9 bar
• Outside diameter: 90 mm
• Standard dimension ratio (SDR): 13.6
• Pipe series (S): 6.3
• Wall thickness: 6.7 mm
• Weight: 1.79 kg/m
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Length: 100-meter coils (for sizes 40 mm to 160 mm)

Available in various lengths and sizes, these pipes meet the highest quality standards, making them a preferred choice for contractors and municipalities across Qatar.
