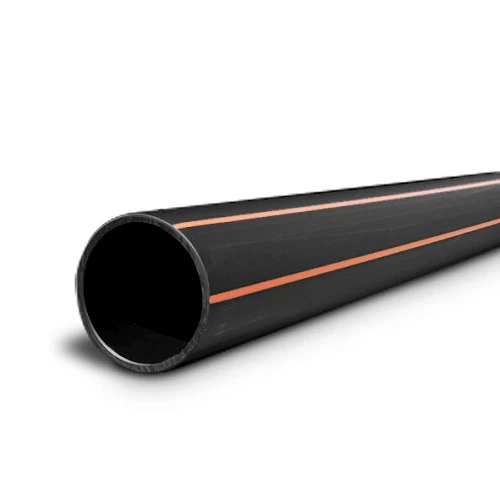

HDPE Polyethylene Pipe PN 6 Bar [PE 100] OD 200 mm Thickness 11.4 mm Color Black with Orange Stripes | Almona Factory
(1477 Product Views)
HDPE polyethylene pipe, characterized by their superior high-temperature and high-pressure properties, made of high-density polyethylene, material grade PE100, pressure 6 bar (SDR 17.6), outside diameter 200 mm, produced by Al-Mona factory.
Product description
HDPE polyethylene pipe for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter: 200 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 100
- Pressure: 6 bar
- Thickness: 11.4 mm
- Material Weight : 6.83 kg/m
- Minimum Required Strength (MRS): 10 MPa
- Design stress (σs): 5 MPa
- Design safety factor: C=2
- Color: black with orange stripes
- Length: 12 meters (available in different lengths upon request)
