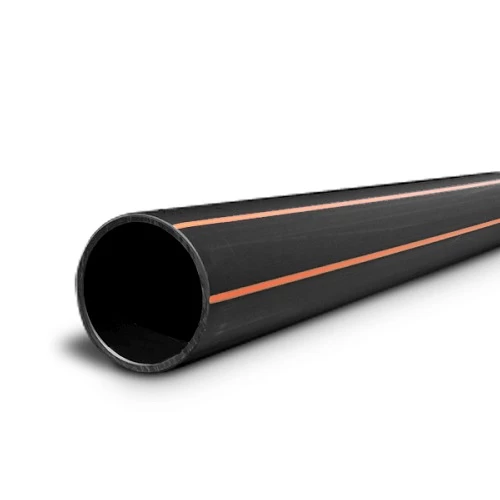

HDPE Polyethylene Pipe PN 6 Bar [PE 100] OD 400 mm Thickness 22.8 mm Color Black with Orange Stripes | Almona Factory
(1339 Product Views)
HDPE pipes, Manufactured to the highest quality, easy to maintain and install, without having to go into the ground, material grade PE100, pressure 6 bar (SDR 17.6), outer diameter 400 mm, produced by Al-Mona Factory.
Product description
HDPE polyethylene pipe for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter: 400 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 100
- Pressure: 6 bar
- Thickness: 22.8 mm
- Material Weight : 27.03 kg/m
- Minimum Required Strength (MRS): 10 MPa
- Design stress (σs): 5 MPa
- Design safety factor: C=2
- Color: black with orange stripes
- Length: 12 meters (available in different lengths upon request)
