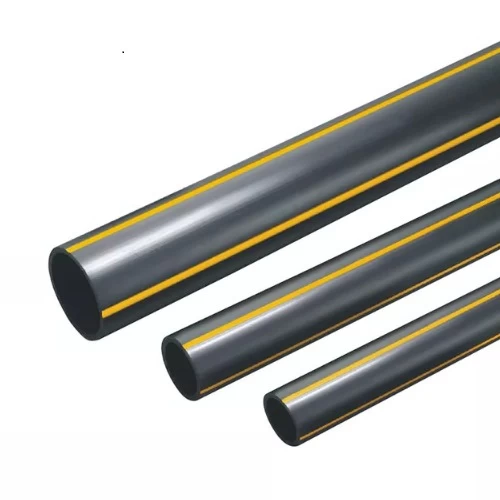

HDPE Polyethylene Pipe PN 10 Bar [PE 80] Outside Diameter 225 mm Thickness 20.5 mm Color Black with Yellow Stripes | Almona Company
(840 Product Views)
HDPE Polyethylene Pipe, color black with yellow stripes, for gas supply networks, It is characterized by its flexibility and resistance to breakage, making it ideal. outside diameter 225 mm pressure 8 bar, produced by Al-Mona factory.
Product description
HDPE pipe for gas supply networks, produced by Al-Mona Company. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter : 225 mm
- Thickness : 20.5 mm
- Material Weight : 13.22 kg/m
- Standard dimensional ratio : SDR 11
- Pressure : 8 bar
- Material grade : PE 80
- Color : Black with yellow stripes
- Minimum Required Strength (MRS) : 8 MPa
- Design stress (σs) : 4 MPa
- Design safety factor : C=2
- Length : 12 meters (available in different lengths upon request)
- Manufactured according to : ISO4437
