![HDPE Polyethylene Pipe PN 10 Bar [PE 100] Outside Diameter 225 mm Thickness 20.5 mm Color Black with Orange Stripes | Almona Factory](https://youmats-media.s3.me-central-1.amazonaws.com/Y85773I9F/conversions/HDPE-size_500_500.webp "HDPE Polyethylene Pipe PN 10 Bar [PE 100] Outside Diameter 225 mm Thickness 20.5 mm Color Black with Orange Stripes | Almona Factory")

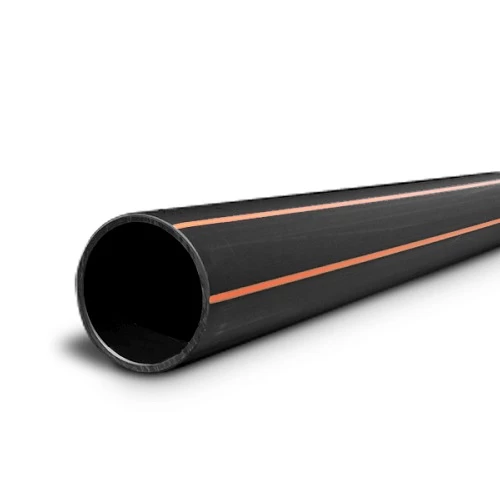

HDPE Polyethylene Pipe PN 10 Bar [PE 100] Outside Diameter 225 mm Thickness 20.5 mm Color Black with Orange Stripes | Almona Factory
(765 Product Views)
HDPE Polyethylene Pipe, color black with orange stripes, for gas supply networks, pressure 10 bar (SDR 11), It withstands external pressures and weather impacts such as sunlight, rain, and freezing, making it ideal for use in diverse environments, outside diameter 225 mm, produced by Al-Mona factory.
Product description
HDPE pipe for gas supply networks, produced by Al-Mona Company. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter : 225 mm
- Thickness : 20.5 mm
- Material Weight: 13.22 kg/m
- Standard dimensional ratio : SDR 11
- Pressure : 10 bar
- Material grade : PE 100
- Color : Black with orange stripes
- Minimum Required Strength (MRS) : 10 MPa
- Design stress (σs) : 5 MPa
- Design safety factor : C=2
- Length : 12 meters (available in different lengths upon request)
- Manufactured according to : ISO4437
