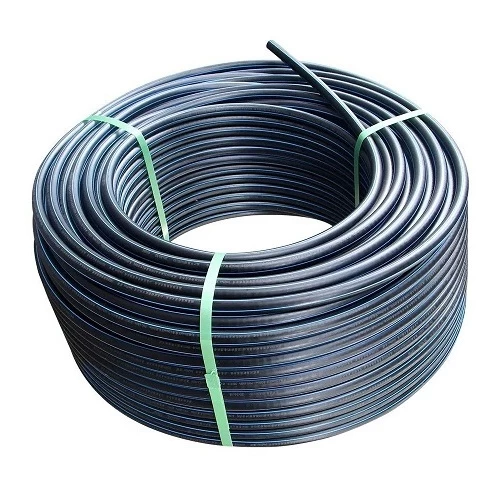

HDPE Plastic Coil Pipe PN 16 Bar [PE 80] Outside Diameter 63 mm SDR 9 Color Black | Almona Factory
(1036 Product Views)
HDPE Plastic coil pipe for water transportation networks, material grade PE 80, outside diameter 63 mm, (SDR 9), pressure 16 bar, according to DIN 8074/8075 standard, produced by Al Mona factory. made of (high-density polyethylene) HDPE pipes can withstand exposure to UV for long periods, black color.
Product description
HDPE coil pipes for water transportation networks, produced by Al-Mona Company. HDPE pipes made of (high-density polyethylene) are the perfect choice for efficient liquid transportation due to their unique advantages that guarantee durability and excellent performance. They can withstand high water pressure, making them ideal for water networks that are subjected to high pressures, also have a 50 years free maintenance lifetime. In addition, they provide superior protection against external factors.
- Outside diameter : 63 mm
- Thickness : 7.1 mm
- Weight : 1.26 kg/m
- Standard dimensional ratio : SDR 9
- Pressure : 16 bar
- Pipe Series (S) : 4
- Material grade : PE 80
- Color : Black
- Minimum Required Strength (MRS) : 8.0 MPa
- Design stress (σs) : 6.4 MPa
- Design safety factor : C=1.25
- Length : Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2 : 100 meter coils from size (40 mm to 160 mm)
- Manufactured according to : DIN 8074/8075
