HDPE pipe Pressure 10 Bar [PE 100] Size (OD) 180 mm Thickness 16.4 mm Color Black with Orange Stripes | Almona Factory

HDPE pipe Pressure 10 Bar [PE 100] Size (OD) 180 mm Thickness 16.4 mm Color Black with Orange Stripes | Almona Factory

Name: HDPE pipe Pressure 10 Bar [PE 100] Size (OD) 180 mm Thickness 16.4 mm Color Black with Orange Stripes | Almona Factory
Brand: Almona
Rating: 3.5 (28 reviews)

(1027 Product Views)

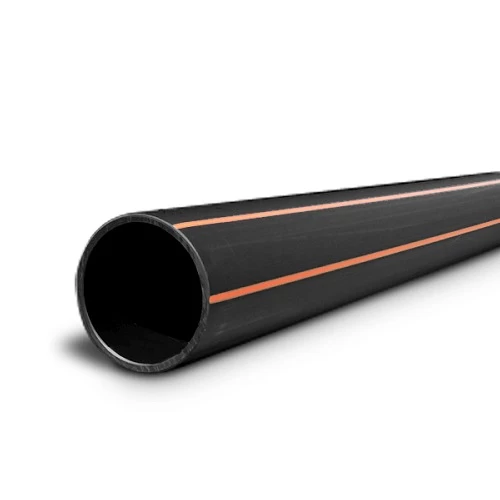

HDPE pipe, color black with orange stripes, for gas supply networks, material grade PE100, pressure 10 bar (SDR 11), outside diameter 180 mm, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, Available in a variety of sizes with highest quality and best prices.

in stock

Quantity

Call Now

🔗 Related Content

Galvanised C Pipe Clamp Size 4 inch... HDPE Pipes GRP Pipes CPVC Pipes SPS HDPE Pipe PE 100 Pressure 6 Bar... HDPE pipe Pressure 10 Bar [PE 100]... HDPE Pipe Pressure 10 Bar [PE 100]... HDPE Pipe Nominal Pressure 10 Bar...

Product description

HDPE pipe for gas supply networks, produced by Al-Mona Company. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.

Outside diameter : 180 mm
Thickness : 16.4 mm
Material Weight: 8.47 kg/m
Standard dimensional ratio : SDR 11
Pressure : 10 bar
Material grade : PE 100
Color : Black with orange stripes
Minimum Required Strength (MRS) : 10 MPa
Design stress (σs) : 5 MPa
Design safety factor : C=2
Length : 12 meters (available in different lengths upon request)
Manufactured according to : ISO4437
