![HDPE Pipe Nominal Pressure 10 Bar [PE 100] OD 200 mm Thickness 18.2 mm Color Black with Orange Stripes | Almona Factory](https://youmats-media.s3.me-central-1.amazonaws.com/Y591A3I9E/conversions/HDPE-size_500_500.webp "HDPE Pipe Nominal Pressure 10 Bar [PE 100] OD 200 mm Thickness 18.2 mm Color Black with Orange Stripes | Almona Factory")

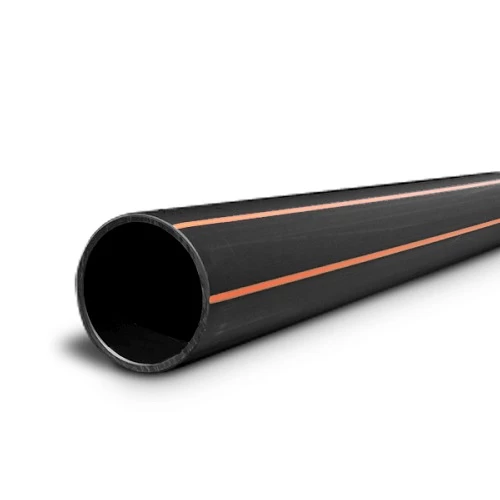

HDPE Pipe Nominal Pressure 10 Bar [PE 100] OD 200 mm Thickness 18.2 mm Color Black with Orange Stripes | Almona Factory
(749 Product Views)
HDPE pipe, color black with orange stripes, for gas supply networks, material grade PE100, produced by Al-Mona factory Made of high-density polyethylene, It is a common and trusted choice in many applications due to its advantages in flexibility, corrosion resistance, lightweight, and ease of maintenance, pressure 10 bar, outside diameter 200 mm.
Product description
HDPE pipe for gas supply networks, produced by Al-Mona Company. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter : 200 mm
- Thickness : 18.2 mm
- Material Weight: 10.45 kg/m
- Standard dimensional ratio : SDR 11
- Pressure : 10 bar
- Material grade : PE 100
- Color : Black with orange stripes
- Minimum Required Strength (MRS) : 10 MPa
- Design stress (σs) : 5 MPa
- Design safety factor : C=2
- Length : 12 meters (available in different lengths upon request)
- Manufactured according to : ISO4437
