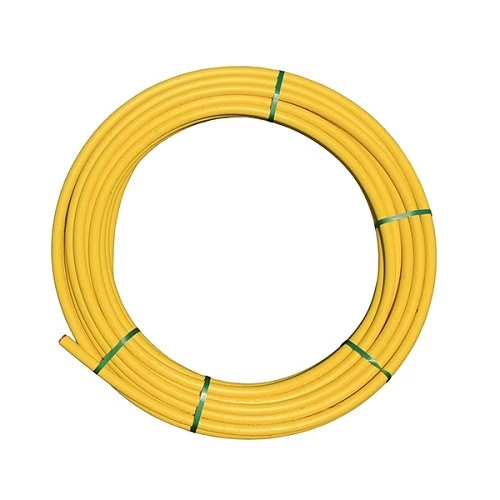

![Almona HDPE Coil Pipe Nominal Pressure 8 Bar [PE 80] OD 20 mm Thickness 3 mm Color Yellow](https://youmats-media.s3.me-central-1.amazonaws.com/Y6D503I7Y/conversions/HDPE-size_500_500.webp "Almona HDPE Coil Pipe Nominal Pressure 8 Bar [PE 80] OD 20 mm Thickness 3 mm Color Yellow")
Almona HDPE Coil Pipe Nominal Pressure 8 Bar [PE 80] OD 20 mm Thickness 3 mm Color Yellow
(760 Product Views)
HDPE pipe coils for gas supply networks, produced by Al-Mona factory. High quality characterized by its resistance to corrosion and rust, used in many uses, material grade PE 80, pressure 8 bar, outside diameter 20 mm, Yellow color .
Product description
HDPE pipe coils for gas supply networks, produced by Al-Mona Company. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter : 20 mm
- Thickness : 3 mm
- Material Weight: 0.16 kg/m
- Standard dimensional ratio : SDR 11
- Pressure : 8 bar
- Material grade : PE 80
- Color : Yellow
- Minimum Required Strength (MRS) : 10 MPa
- Design stress (σs) : 5 MPa
- Design safety factor : C=2
- Length : Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2 : 100 meter coils from size (40 mm to 160 mm)
- Manufactured according to : ISO4437
