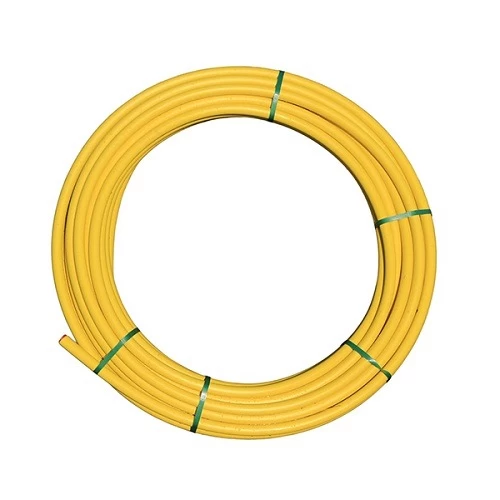

Almona HDPE Coil Pipe Pressure 8 Bar [PE 80] Size (OD) 75 mm Thickness 6.8 mm Color Yellow
(877 Product Views)
HDPE pipe coils for gas supply networks, pressure 8 bar, outside diameter 75 mm, Yellow color produced by Al-Mona factory. It is characterized by resistance to breakage, pressure and chemical corrosion, resistant to harmful sunlight, withstands high temperatures. Made of high-density polyethylene.
Product description
HDPE pipe coils for gas supply networks, produced by Al-Mona Company. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter : 75 mm
- Thickness : 6.8 mm
- Material Weight: 1.50 kg/m
- Standard dimensional ratio : SDR 11
- Pressure : 8 bar
- Material grade : PE80
- Color : Yellow
- Minimum Required Strength (MRS) : 10 MPa
- Design stress (σs) : 5 MPa
- Design safety factor : C=2
- Length : Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2 : 100 meter coils from size (40 mm to 160 mm)
- Manufactured according to : ISO4437
