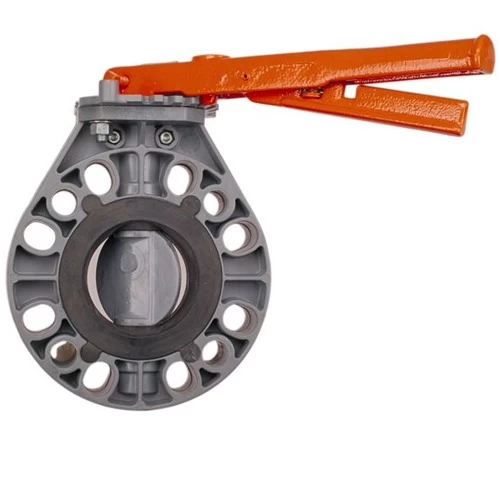

Butterfly Valve NIBCO PVC and CPVC Model B Size 4 Inch

Butterfly Valve NIBCO PVC and CPVC Model B Size 4 Inch

Name: Butterfly Valve NIBCO PVC and CPVC Model B Size 4 Inch
Availability: InStock
Rating: 3.7 (7 reviews)

(1359 Product Views)

Butterfly Valve NIBCO Material PVC and CPVC Model B, Size 4 Inch. Are lightweight, easy to install, maintenance-free, and will not rust,or corrode, and are backed by a 1-year limited warranty.

in stock

Call Supplier

About Product

Product description

Features:

Rated at 150 psi with non-shock service at 73°F (6" size 115 psi)
Mates between ASME B16.5, Class 150; ISO 2084 PN 10, DN 80; and DIN 2532, PN 10, DN 80. Both 4-bolt and 8-bolt patterns are in 3" size.
PVC over molded 316 stainless hex shaft not exposed to the liquid
Top bearing, as well as the upper and lower bushings, are glass-filled PTFE for ease of operation and maximum service life.
Seat/boot design eliminates need for gaskets between mating flanges.
Silicone-free lubricant is used to assemble Model B butterfly valves.
