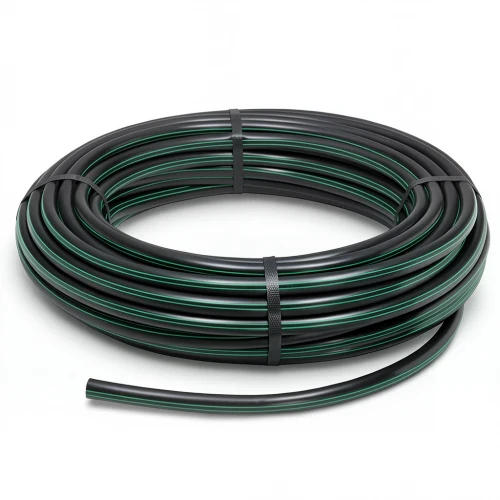

HDPE Plastic Coil Pipe PN 6 Bar [PE 80] OD 75 mm SDR 22 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe, manufactured by Almona Factory in accordance with DIN 8074/8075, is a superior solution for water transmission and distribution networks across Kuwait. Made from high-density polyethylene (PE80), it delivers exceptional durability and performance, ensuring reliable service in demanding conditions.

Key Features

• Outside diameter: 75 mm
• Standard dimension ratio: SDR 22
• Pipe series (S): 10.5
• Material grade: PE 80
• Pressure rating: 6 bar
• Wall thickness: 3.5 mm
• Minimum required strength (MRS): 8 MPa
• Weight: 0.807 kg/m
• Design safety factor: C=1.25
• Color: Black with green stripes
• Available in coils: 100 m, 200 m, 300 m, up to 1500 m (for sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm

Applications in Kuwait

Ideal for potable water supply lines, irrigation systems, and industrial water networks, this pipe withstands high pressures and provides a maintenance-free service life of 50 years. Its resistance to UV radiation and chemical corrosion (pH 2–12) makes it suitable for Kuwait's harsh climate and soil conditions. The flexibility of HDPE and welded joints also ensures excellent earthquake resistance, a valuable attribute for infrastructure resilience.
