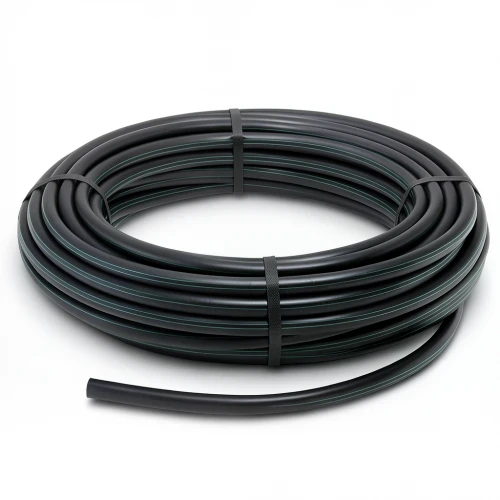

HDPE Plastic Coil Pipe PN 10 Bar [PE 63] Outside Diameter 32 mm SDR 11 Color Black | Almona Company

This HDPE coil pipe from Al Mona Company is engineered for reliable liquid conveyance in demanding environments. Made from high-density polyethylene (PE 63), it offers exceptional durability and long-term performance, making it a preferred choice for irrigation systems and water distribution networks across Kuwait.

With a pressure rating of 10 bar and an outside diameter of 32 mm, this pipe is well-suited for both residential and commercial projects in Kuwait City, Hawalli, and Al Ahmadi. Its black color and SDR 11 dimension ratio ensure consistent wall thickness, while the material's inherent corrosion resistance protects against aggressive soil conditions common in the region.

Key Features

• Pressure rating: 10 bar (PN 10)
• Outside diameter: 32 mm, wall thickness: 2.9 mm
• Material weight: 0.272 kg/m
• Standard dimension ratio: SDR 11, Pipe Series (S): 5
• Material grade: PE 63 with MRS of 6.3 MPa
• Design stress: 5.04 MPa, safety factor C=1.25
• Available in coils of 100, 200, 300 meters (up to 1500 m) for sizes 16–32 mm; 100-meter coils for sizes 40–160 mm
• Manufactured to DIN 8074/8075 standards
• 50-year maintenance-free service life
• Superior resistance to corrosion, rust, and ground pressure

Whether for agricultural irrigation in Al Wafra or municipal water supply in Kuwait City, this HDPE coil pipe delivers dependable performance with minimal upkeep, ensuring efficient water flow and long-term savings.
