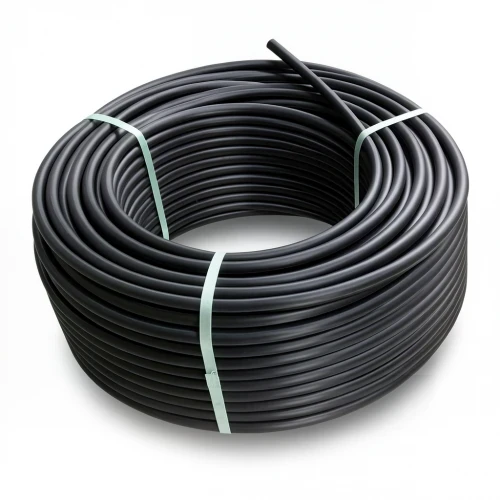

HDPE Coil Pipe Working Pressure 20 Bar [PE 100] Outer Diameter 40 mm SDR 9 Color Black | Almona Company
(2 Product Views)
Product description
This HDPE coil pipe from Al-Mona Company is engineered for reliable water transportation in Kuwait's demanding environment. Manufactured from high-density polyethylene (PE100), it offers exceptional strength, durability, and resistance to corrosion, ensuring long service life even in harsh conditions.
With an outer diameter of 40 mm and a standard dimensional ratio (SDR) of 9, this pipe handles a working pressure of 20 bar, making it suitable for a wide range of water supply and distribution applications. Its black color provides UV resistance, which is crucial for outdoor installations under the intense Kuwaiti sun.
Key Features
- Material grade: PE100 (high-density polyethylene)
- Outer diameter: 40 mm, wall thickness: 4.5 mm
- Working pressure: 20 bar (SDR 9)
- Minimum required strength (MRS): 10 MPa, design stress: 8 MPa
- Manufactured according to ISO 4427-2
- Available in 100-meter coils (for sizes 40 mm to 160 mm)
Ideal for water networks in Kuwait City, Hawalli, and Al Ahmadi, this pipe is easy to install and offers excellent flow characteristics, reducing maintenance costs over time.
