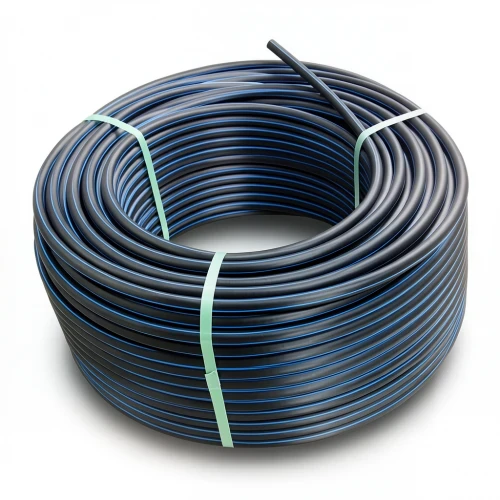

HDPE Plastic Coil Pipe PN 4 Bar [PE 100] Outside Diameter 90 mm SDR 41 Color Black with Blue Stripes | Almona Factory

This HDPE coil pipe from Almona Factory is a premium solution for water transportation networks across Kuwait. Manufactured from high-density polyethylene (PE 100), it offers exceptional resistance to high pressures and external environmental factors, making it a reliable choice for both residential and commercial projects in cities like Kuwait City, Hawalli, and Al Ahmadi.

Key Features

• Outside diameter: 90 mm
• Wall thickness: 2.2 mm
• Material weight: 0.647 kg/m
• Standard dimensional ratio (SDR): 41
• Pressure rating: 4 bar
• Pipe series (S): 20
• Material grade: PE 100
• Color: Black with blue stripes
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor: C=1.25
• Length: Available in coils of 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm)
• For sizes 40 mm to 160 mm: supplied in 100-meter coils
• Manufactured according to DIN 8074/8075 standards

Applications in Kuwait

Ideal for potable water supply lines, irrigation systems, and industrial fluid transfer. The pipe's flexibility and coil form simplify installation in tight spaces and long runs, reducing the need for joints. Its resistance to corrosion and abrasion ensures long-term performance in Kuwait's harsh desert climate, with a lifespan of up to 50 years without maintenance.
