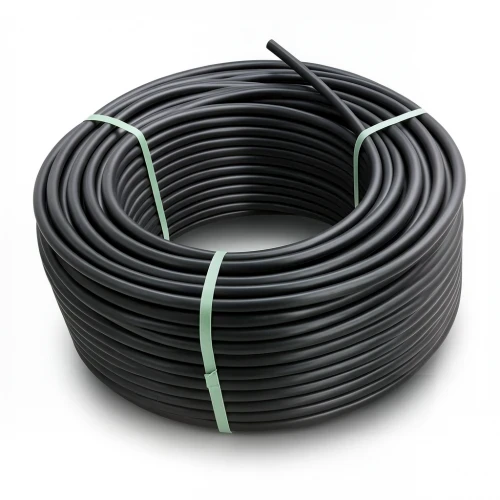

HDPE Coil Pipe PN 20 Bar [PE 100] OD 140 mm SDR 9 Color Black | Almona Factory
(24 Product Views)
High-density polyethylene (PE100) coil pipe with 140 mm outer diameter, rated for 20 bar, in black, from Almona Factory. Ideal for water networks in Kuwait.
in stock
Product description
This HDPE coil pipe from Almona Factory is engineered for reliable water transportation in Kuwait's demanding environment. Manufactured from high-density polyethylene (PE100), it delivers exceptional strength, durability, and resistance to corrosion, ensuring long service life even under high temperatures and pressure.
Key Features
- Outside diameter: 140 mm
- Wall thickness: 15.7 mm
- Standard dimensional ratio (SDR): 9
- Pressure rating: 20 bar (PN 20)
- Pipe series (S): 4
- Material grade: PE100
- Minimum required strength (MRS): 10 MPa
- Design stress (σs): 8 MPa
- Design safety factor: C=1.25
- Color: Black
- Available in coils: 100 meters (for sizes 40 mm to 160 mm); other lengths up to 1500 meters for smaller sizes
- Manufactured according to ISO 4427-2
Applications in Kuwait
Ideal for potable water distribution, irrigation systems, and industrial pipelines across Kuwait City, Hawalli, and Al Ahmadi. The black color provides UV resistance for outdoor installation, and the coil format simplifies handling and reduces joints, making it suitable for long-distance trenching projects common in Kuwait's infrastructure development.
