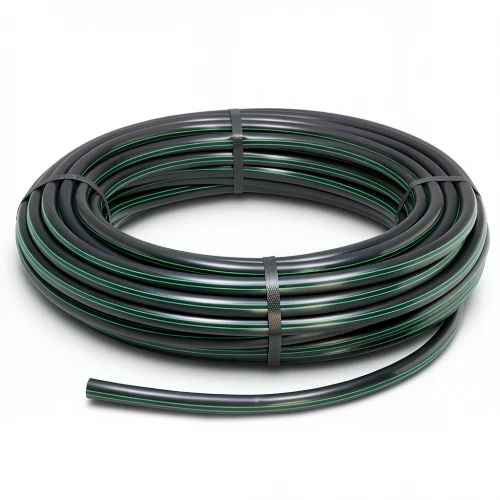

HDPE Plastic Coil Pipe PN 4 Bar [PE 63] OD 140 mm SDR 26 Color Black with Green Stripes | Almona Factory

Introducing the HDPE Plastic Coil Pipe from Al Mona Factory, a premium solution for water transportation networks in Kuwait. Manufactured to DIN 8074/8075 standards, this pipe is crafted from high-density polyethylene (PE 63) to deliver exceptional durability and performance in demanding conditions.

Designed for reliability, this pipe withstands high water pressure, making it a top choice for municipal and industrial water systems across Kuwait City, Hawalli, and Al Ahmadi. Its flexibility reduces the need for extensive soil work during installation, saving time and resources. With a 50-year maintenance-free lifespan, it offers long-term value and peace of mind.

This pipe provides superior resistance to UV radiation, chemical corrosion (pH 2-12), and seismic activity, thanks to its high flexibility and strong welded joints. Whether for potable water lines, irrigation, or industrial applications, it performs consistently under Kuwait's harsh climate.

Key Features

• Outside diameter: 140 mm
• Standard dimension ratio: SDR 26
• Pipe series (S): 12.5
• Material grade: PE 63
• Pressure rating: 4 bar
• Wall thickness: 5.4 mm
• Minimum required strength (MRS): 6.3 MPa
• Design safety factor: C=1.25, σs = 5.04 MPa
• Weight: 2.32 kg/m
• Color: Black with green stripes
• Available in coils: 100, 200, 300 meters (up to 1500 m for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm
