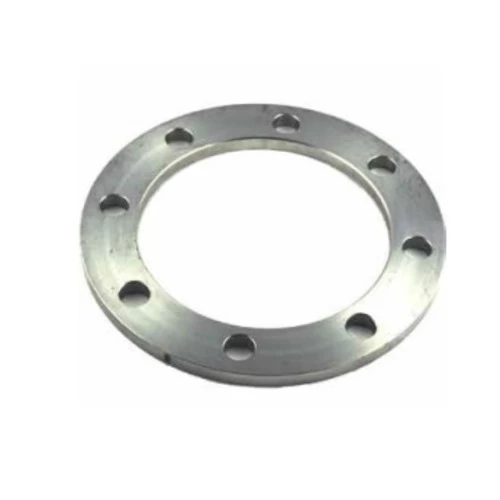

Stainless Steel Flange Size 32 mm, Thickness 6 mm | Union Pipes Factory
(455 Product Views)
stainless steel flange size 32 mm, thickness 6 mm, stainless steel flanges have high durability and the ability to withstand high pressures, union pipes factory
Product description
Flange produced by Union Pipe Factory, made of high-quality stainless Steel, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.
- Size: 32 mm
- Flange size: 25 mm (1 inch)
- Pitch Circle Diameter (P): 79.5 mm
- Inner Diameter (I): 44 mm
- Outer Diameter (D): 108 mm
- Thickness (T): 6 mm
- Number of holes×Hole diameter: 4×16 mm
- Bolt size: 1/2 inch
