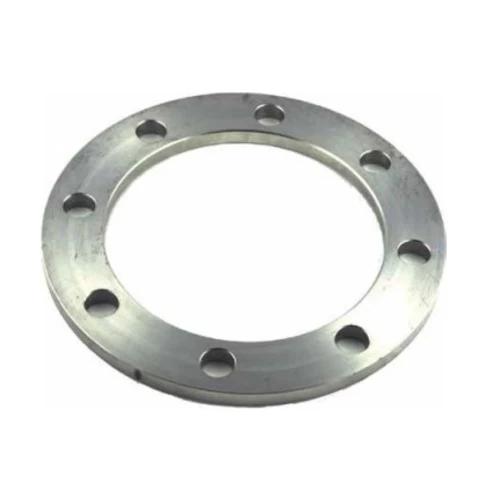

Flange Size 250 mm, Thickness 13 mm, Union Pipes Factory

Flange, produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.

• Size: 250 mm
• Pipe size: 250 mm (10 inch)
• Pitch Circle Diameter (P): 362 mm
• Inner Diameter (I): 290 mm
• Outer Diameter (D): 406 mm
• Thickness (T): 13 mm
• Number of holes×Hole diameter: 12×26 mm
• Bolt size: 7/8 inch
• According to standard: ANSI
