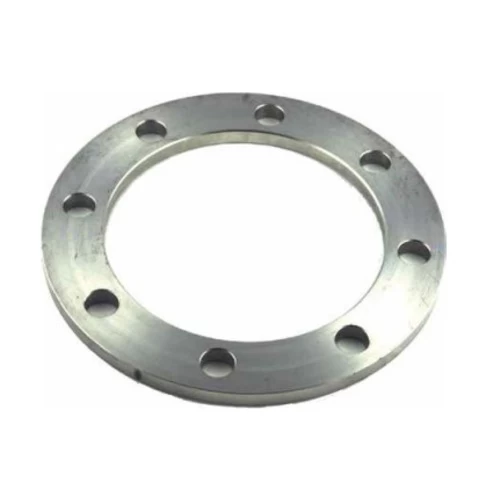

Pipes Flange Size 500 mm, Thickness 25 mm, UPI Factory

Flange, produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.

• Size: 500 mm
• Pipe size: 500 mm (20 inch)
• Pitch Circle Diameter (P): 635 mm
• Inner Diameter (I): 533 mm
• Outer Diameter (D): 700 mm
• Thickness (T): 25 mm
• Number of holes×Hole diameter: 20x32 mm
• Bolt size: 1 1/8 inch
• According to standard: ANSI
