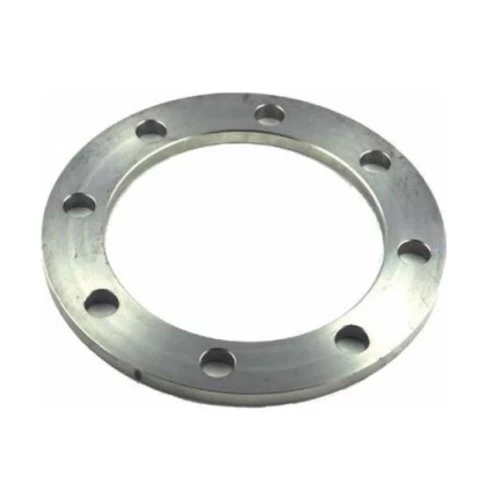

Pipes Flange Size 125 mm, Thickness 13 mm, UPI Factory

Flange, produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.

• Size: 125 mm
• Pipe size: 125 mm (5 inch)
• Pitch Circle Diameter (P): 216 mm
• Inner Diameter (I): 140 mm
• Outer Diameter (D): 254 mm
• Thickness (T): 13 mm
• Number of holes×Hole diameter: 8x23 mm
• Bolt size: 3/4 inch
• According to standard: ANSI
