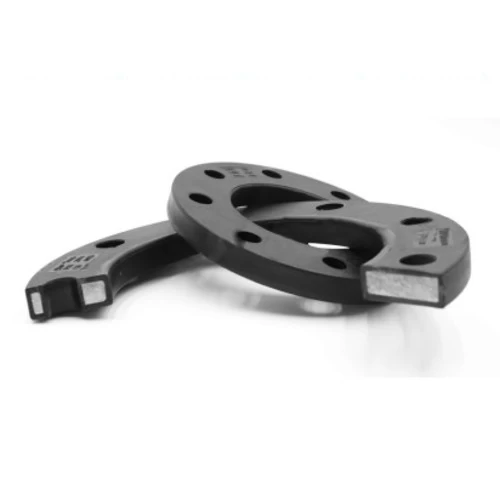

Pipe Flange Size 10 inch, Thickness 30 mm, UPI Factory
(909 Product Views)
Flange pipe, 10-inch, 30 mm thickness, manufactured by UPI Factory, featuring an advanced engineering design to ensure optimal performance in industrial and residential systems.
Product description
Flange produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.
- Size : 10 inch
- Nominal diameter (dn): 250 mm
- Outer diameter (D): 410 mm
- Spacing between holes (K): 361 mm
- Ring width (B): 288 mm
- Thickness (h): 30 mm
- Number of holes (n): 12
- Hole diameter (d): 25 mm
- Weight: 8.32 kg
- Class: 150
- According to standard: ASME B16.5
