HDPE plastic flange, outer diameter 20 mm, pressure 16 bar, thickness 16 mm | UPI company
(572 Product Views)

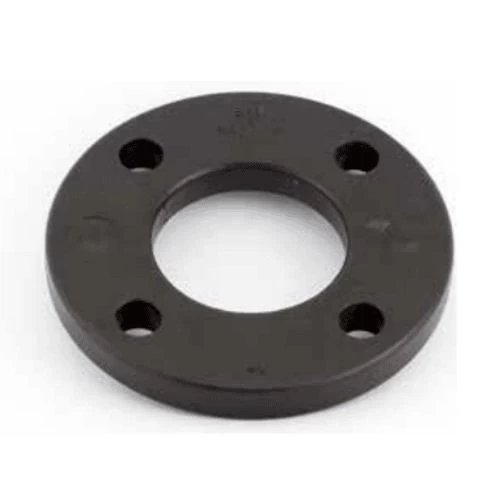

HDPE plastic flange, outer diameter 20 mm, pressure 16 bar, thickness 16 mm, produced by UPI, ideal for high pressure systems and can withstand extended use.
Product description
HDPE plastic flange (High-Density Polyethylene) produced by Union Pipe Factory, made of high quality materials. It offers high chemical resistance and excellent corrosion resistance, making it ideal for harsh environments. The flange is also highly durable and strong, allowing to withstand ground pressure and heavy operation without losing performance. it also provides excellent UV resistance, making it suitable for use in different environmental conditions without degrading. It is widely used in hot and cold water supply under high pressure, as well as in sewage systems. Available in a variety of sizes at the best prices.
- Size: 20 mm
- Flange size: 15 mm (1/2 inch)
- Pitch Circle Diameter (P): 65 mm
- Inner Diameter (I): 32 mm
- Outer Diameter (D): 95 mm
- Thickness (T): 16 mm
- Number of holes ร Hole diameter: 4 ร 14 mm
- Bolt size: M12
- Pressure: 16 bar
- Standard: BS EN 1092
