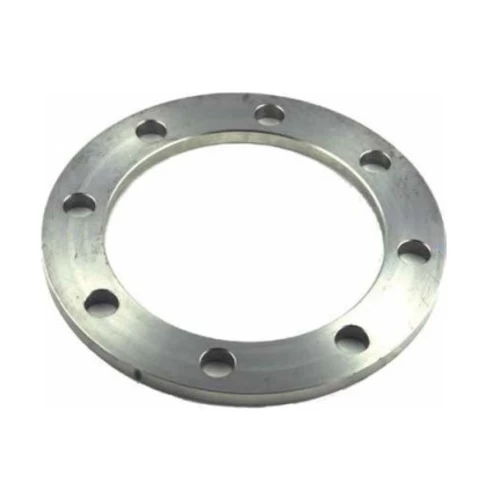

Flange Size 400 mm, Thickness 22 mm, Union Pipes Factory
(542 Product Views)
Flange Size 400 mm, Thickness 22 mm, by Union Pipes Factory, Made of high quality materials.
Product description
Flange, produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.
- Size: 400 mm
- Pipe size: 400 mm (16 inch)
- Pitch Circle Diameter (P): 540 mm
- Inner Diameter (I): 430 mm
- Outer Diameter (D): 600 mm
- Thickness (T): 22 mm
- Number of holes×Hole diameter: 16x29 mm
- Bolt size: 1 inch
- According to standard: ANSI
