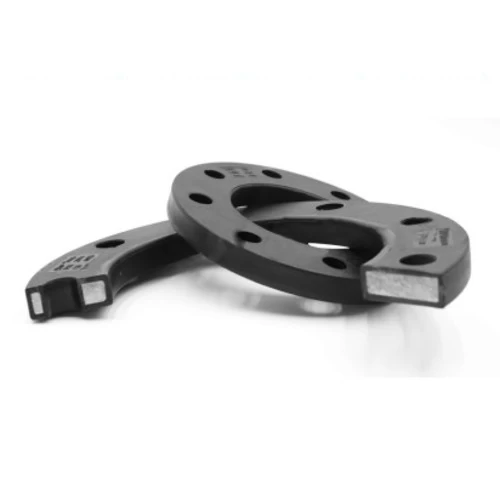

Flange Flat Pipe Size 6 inch, Thickness 26 mm, Union Pipes Factory
(449 Product Views)
Flat pipe flange 6-inch , 26 mm thickness, manufactured by Union Pipes Company, used for connecting water pipes in general with good quality and easy installation.
Product description
Flange produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.
- Size: 6 inches
- Nominal Diameter (DN): 180 mm
- Outer Diameter (D): 286 mm
- Spacing between holes (K): 241 mm
- Ring Width (B): 195 mm
- Thickness (h): 26 mm
- Number of Holes (n): 8
- Hole Diameter (d): 23 mm
- Weight: 3.36 kg
- Class: 150
- According to Standard: ASME B16.5
