Flat Flange Size 25 mm, Thickness 6 mm, Union Pipes Company
(856 Product Views)

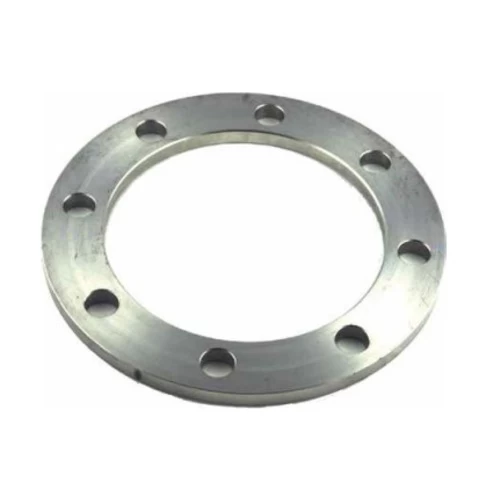

Flat Flange Size 25 mm, Thickness 6 mm, by Union Pipes Company, Strong and durable.
Product description
Flange, produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.
- Size: 25 mm
- Pipe size: 20 mm (3/4 inch)
- Pitch Circle Diameter (P): 70 mm
- Inner Diameter (I): 37 mm
- Outer Diameter (D): 98 mm
- Thickness (T): 6 mm
- Number of holes×Hole diameter: 4×16 mm
- Bolt size: 1/2 inch
- According to standard: ANSI
