Vertical Cabin with Small Machine Room, 1.75 m/s Operating Speed , 10 Persons, 800 KG Load, PVD Coated Stainless Steel, Ceiling with Acrylic Arch and Vents, PVC Floor
(573 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Vertical Cabin with Compact Machine Space, 1.75 m/s Operating Speed, 10Persons, 800KG Load, PVD Coated Stainless Steel, Ceiling with Acrylic Arch and Vents, PVC Floor designed with a modern and functional approach using beautiful and clean materials. The ceiling includes a stainless steel side frame with an acrylic arch and equipped with distributed ventilation openings to improve air quality and lighting inside the cabin.
Product description

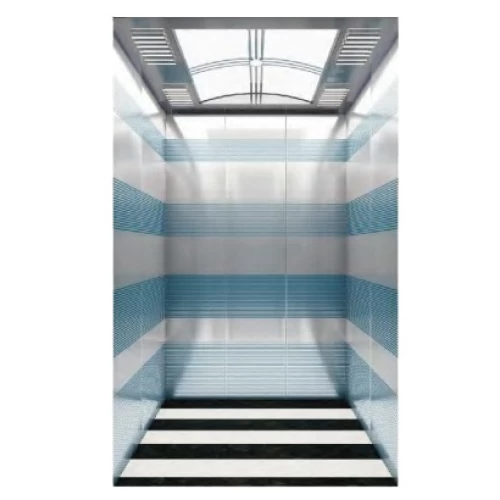

Passenger elevator with a small machine room, designed with a modern and functional approach using durable and clean materials. The car walls are made of etched stainless steel with a PVD finish, offering both resistance and a modern reflective look. The ceiling includes a stainless steel side frame with an acrylic arch and ventilation openings that improve airflow and lighting inside the cabin. The PVC floor is easy to clean and built for heavy daily use. This elevator is suitable for commercial, residential, or office buildings that need a reliable and simple design. It includes all standard safety systems such as door sensors, alarm, emergency lighting, and auto-brake.
- Ceiling material: Stainless steel with side frame
- Wall material: PVD-coated etched stainless steel
- Handrail material: None
- Floor material: PVC
- Color: Silver with horizontal blue lines
- Load capacity:800 KG
- Number of passengers: 10 persons
- Speed: 1.75 m/s
- Car dimensions: 1400 × 1350 mm
- Door opening dimensions: 800 × 2100 mm
- Shaft dimensions: 2000 × 2000 mm
- Machine room dimensions: 2000 × 2000 mm
- Pit depth: 1600 mm
- Top floor height: 4700 mm
- Motor power: 9.4 kW
- Reaction force R1: 44800 N
- Reaction force R2: 27400 N
- Reaction force R3: 5400 N
- Load force P1: 72000 N
- Load force P2: 56000 N
- Brand: FUJI
- Design code: JG-K10
- Model: TKJ800/1.75
