Space saving passenger elevator, compact design, 1000 KG load, 1.0 m/s speed, 13 persons capacity, etched marble-patterned walls
(430 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Space saving passenger elevator, compact design, 1000 KG load, 1.0 m/s speed, 13 persons capacity, etched marble-patterned walls, characterized by being an ideal solution for real estate developers looking for excellence.
Product description

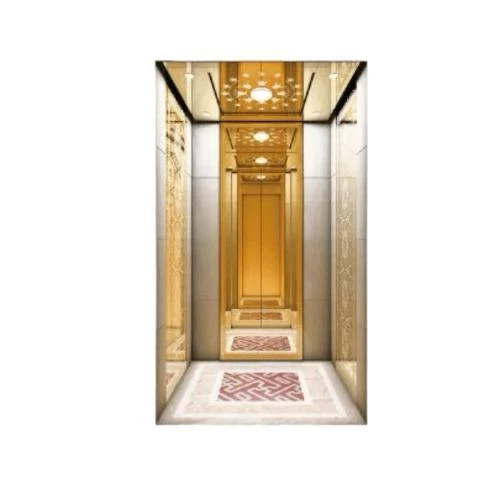

A machine roomless passenger elevator specially designed for limited-space buildings. It features an etched titanium gold mirror ceiling with a central ceiling lamp and LED lighting on all sides. The car walls combine marble or imitation marble with etched titanium-plated stainless steel for a luxurious and elegant look. It includes no handrail to maintain a clean layout and has a practical PVC floor. Ideal for hotels and premium residences. Available in various designs.
- Ceiling material: Etched titanium gold mirror with central ceiling lamp and LED at four sides
- Wall material: Marble or imitation marble grain with etched titanium-plated stainless steel
- Handrail material: None
- Floor material: PVC
- Color: Marble gold
- Load capacity: 1000 KG
- Number of passengers: 13 persons
- Speed: 1.0 m/s
- Car dimensions: 1600x1400 mm
- Door opening dimensions: 900x2100 mm
- Shaft dimensions: 2250x1800 mm
- Pit depth: 1500 mm
- Top floor height: 4600 mm
- Motor power: 6.7 kW
- Reaction force R1: 27400 N
- Reaction force R2: 39600 N
- Load force P1: 88000 N
- Load force P2: 68000 N
- Brand: FUJI
- Design code: JG-K05
- Model: TKJW1000/1.0
