Passenger Elevator (MRL), Patterned Surface Wall, Marble PVC, 18 people, 1350 KG Load Limit, Operation Rate 1 m/s
(414 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Passenger Elevator (MRL), Patterned Surface Wall, Marble PVC, 18 people, 1350 KG Load Limit, Operation Rate 1 m/s, reducing energy consumption by over 33%, Ideal for modern buildings and space-conscious projects.
Product description

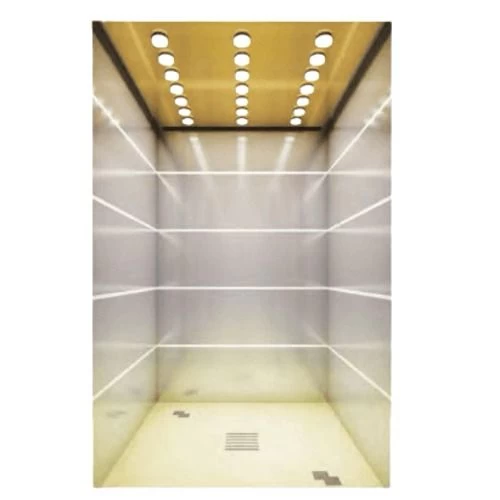

machine roomless passenger elevator showcases a premium bronze design with integrated acrylic lighting for a luxurious yet modern look. The car walls are made of irregular grain stainless steel with embedded mirror strips that enhance reflections and depth. The flooring features a marble parquet finish or imitation marble PVC, combining elegance with practicality. As an MRL system, the motor and control components are installed inside the shaft, eliminating the need for a separate machine room and reducing energy consumption by over 33%. Ideal for modern buildings and space-conscious projects. Available in various designs and specifications to suit all projects.
- Ceiling material: Bronze mirror frame with acrylic lighting decoration
- Wall material: Irregular grain stainless steel with mirror strip
- Handrail material: None
- Floor material: Marble parquet or imitation marble PVC
- Color: Silver
- Load capacity: 1350 KG
- Number of passengers: 18 persons
- Speed: 1 m/s
- Car dimensions: 1900 Γ 1600 mm
- Door opening dimensions: 1100 Γ 2100 mm
- Shaft dimensions: 2900 Γ 2400 mm
- Pit depth: 1600 mm
- Top floor height: 4400 mm
- Motor power: 9.2 kW
- Reaction force R1: 37600 N
- Reaction force R2: 46400 N
- Load force P1: 114000 N
- Load force P2: 87000 N
- Brand: FUJI
- Design code: JG-K11
- Model: TKJW1350/1
